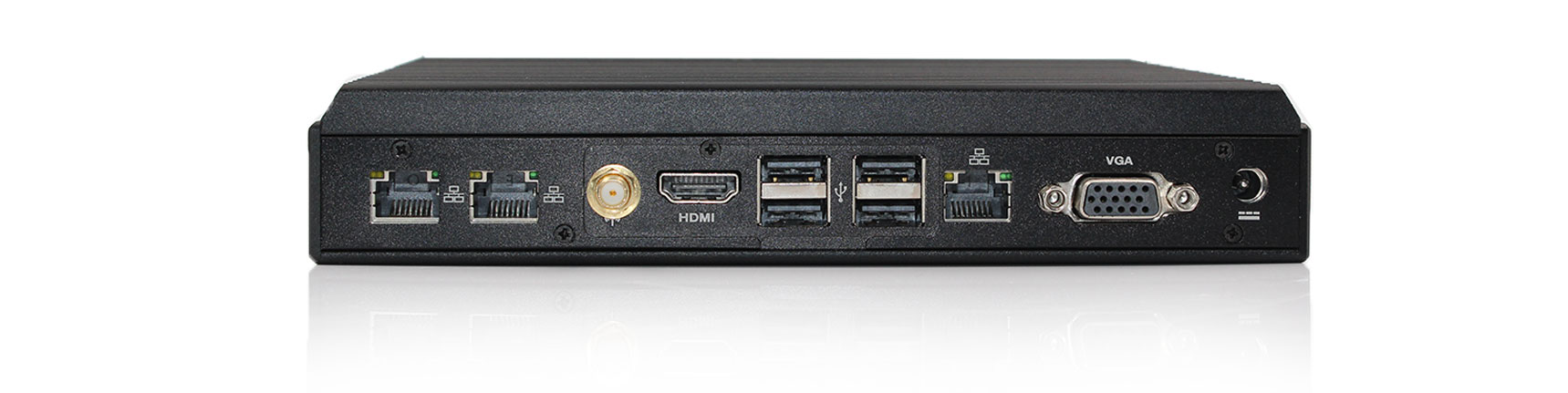

Supreme Interfaces
Plenty of ports for full connectivity.

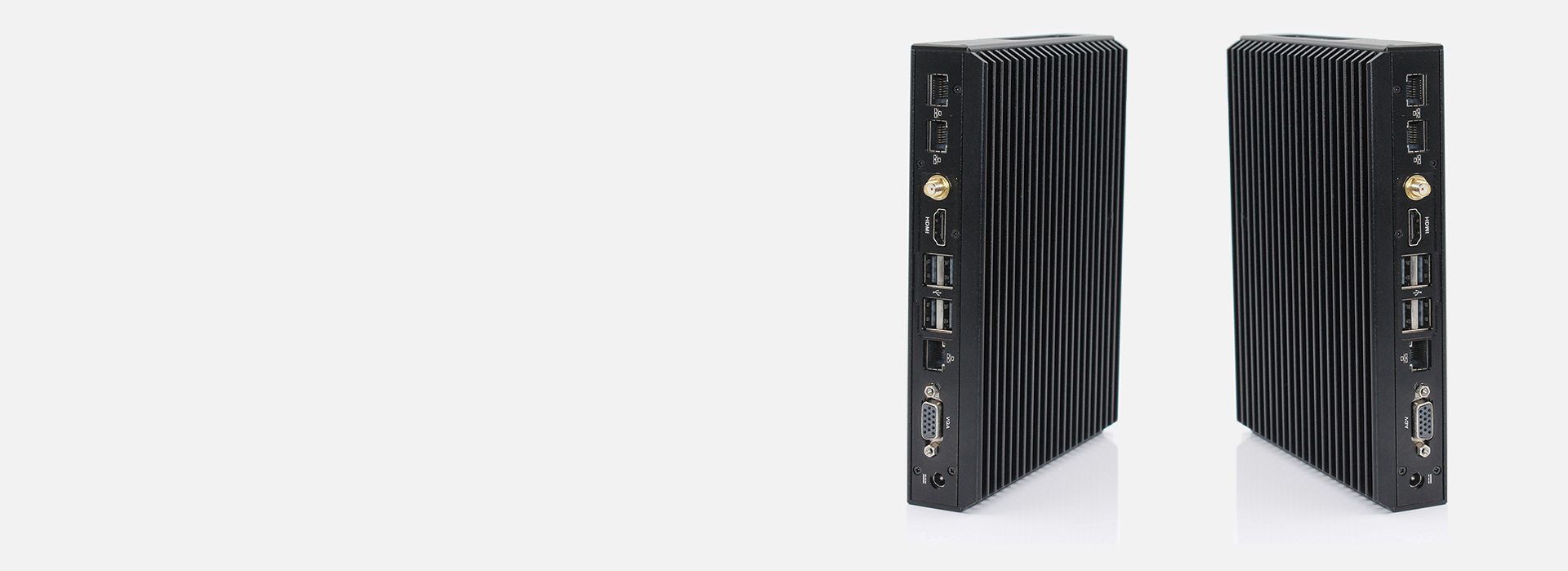

VHBYT-30
Intel X86 Bay Trail Based Embedded Industrial PC
Lightweight, small form design
Still, it delivers the best performance.
Advanced features in Mini PC
This Mini PC blends the performance and power of Intel Bay Trail platform with rich I/O interfaces to form an especially adaptable computing platform, ideal for workplace and home entertainment.

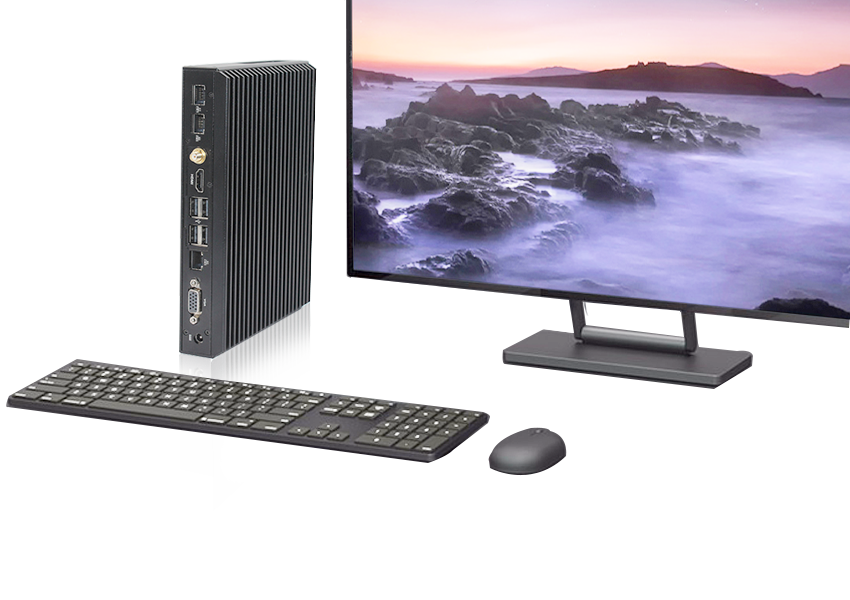

Dual Display
Enhanced productivity effiency by extended desktop or enjoy work and play with one ultra small form factor unit.
Mini PC
Compact, portable and “east to setup” Mini PC designed to provide maximum performance at a minimum foot print.
产品描述

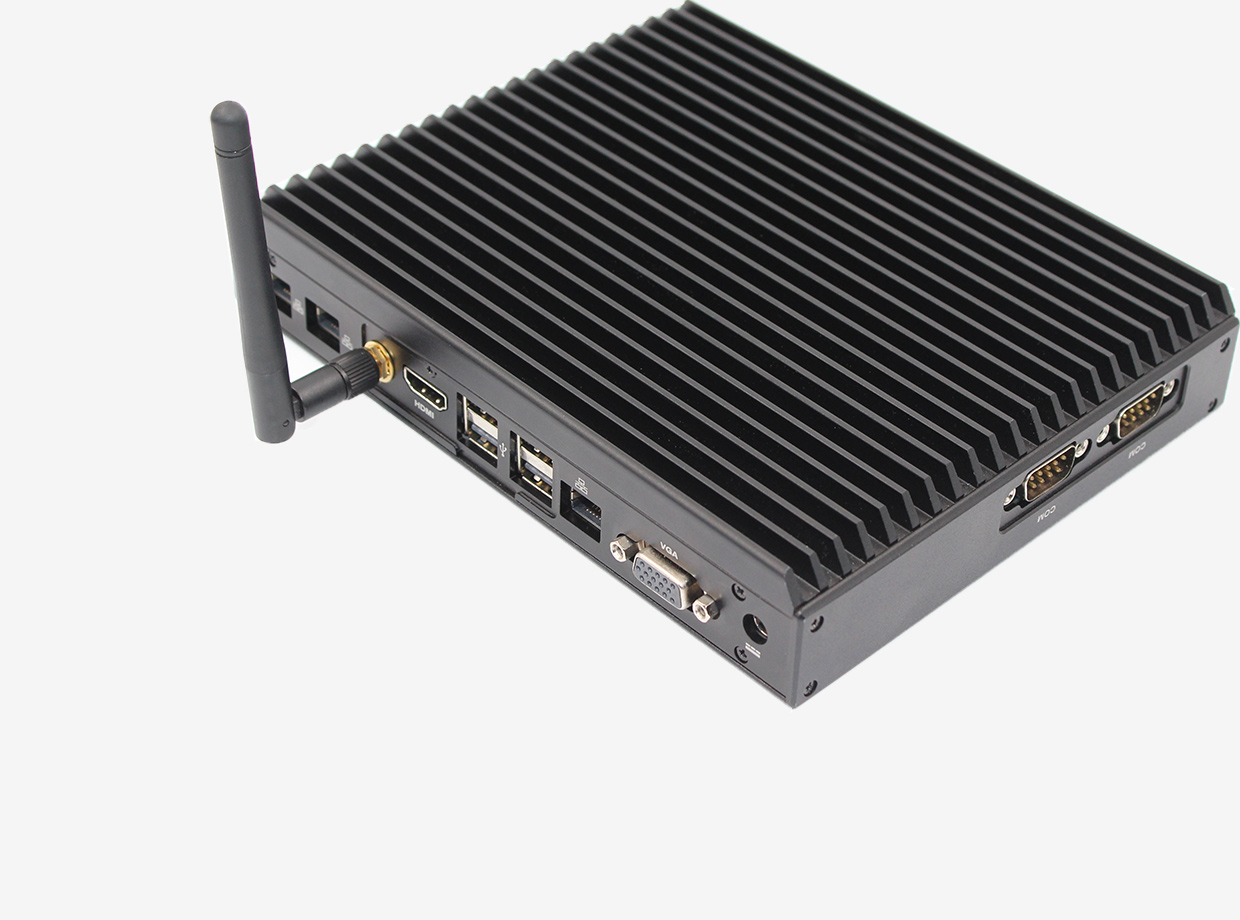

The VHBYT-30 is a small form factor fanless embedded system. Built with the Intel® Bay Trail platform, it supports Intel® Celeron™ J1900. This system carries one DDR3L SODIMM slots with a total maximum capacity of 8GB to add higher bandwidth and lower latencies for processes.That being said, this computer also features 1 HDMI and 1 VGA(HDMI, optional), supporting dual independent playback.
This embedded system has aluminum enclosure, and is designed to be fanless and compact, which makes it an ideal for space-sensitive applications. It has two configurations: 1 version has 1 × VGA and 1 × HDMI, and the other version 2 HDMI without affecting other I/O interfaces. It also has rich interfaces as 4 × USB2.0, 2 × USB3.0, 2 × COM(Either COM can be changed as RS232 or RS485), 1 DC_IN, Mic-in and Line-out, catering to all the requirements in the market. This Bay Trail based system is designed for various application as, but not limited to, automation, network security, communication and transportation.
功能
Aluminum enclosure
Intel Baytrail-D Celeron processor
Support single channel DDR3L-1600MHz up to 8GB
Rich I/O ports: 2 × USB3.0, 4 × USB2.0, 3 × LAN, 2 × COM(Either COM can be changed as RS232 or RS485)
mSATA interface for SSD, wifi, 4G module
Embedded, VESA mount and desktop ready for easy installation
Fanless design and low power consumption
