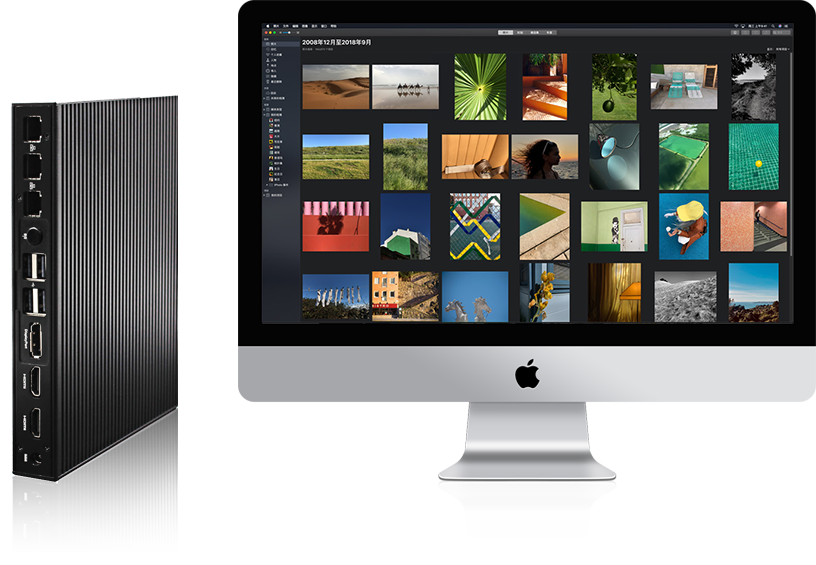

The VAPL-30 is a small form factor embedded fanless system. Built with the Intel® Apollo Lake platform, it supports Intel® Celeron™ J3355, J3455, J4205, N3350, N3450 and N4200. With low power consumption, it is designed to be fanless. This system carries two DDR3L 1600MHz SO-DIMM slots with a total maximum capacity of 8GB to add higher bandwidth and lower latencies for processes.That being said, this computer also features one Micro SIM card slot,one Mini-PCIe and eMMC(optional) which makes it a good choice for data transportation applications.

This embedded system also supports trio independent display via HDMI and DP interfaces. It has rich interfaces as 4×USB2.0, 2×USB3.0, 2×COM, 1×Mic-in, 1×Line-out and 3×LAN, catering to most requirements in the market. This Apollo Lake based fanless system is designed for various application as, but not limited to, automation, network security, communication and transportation.

• Onboard Intel Apollo J3455, J3355, N3350, N3450, N4200 and J4205

• 2 × SO-DIMM slots for memory up to 8GB

• Support trio independent display via 2 × HDMI and 1 × DP

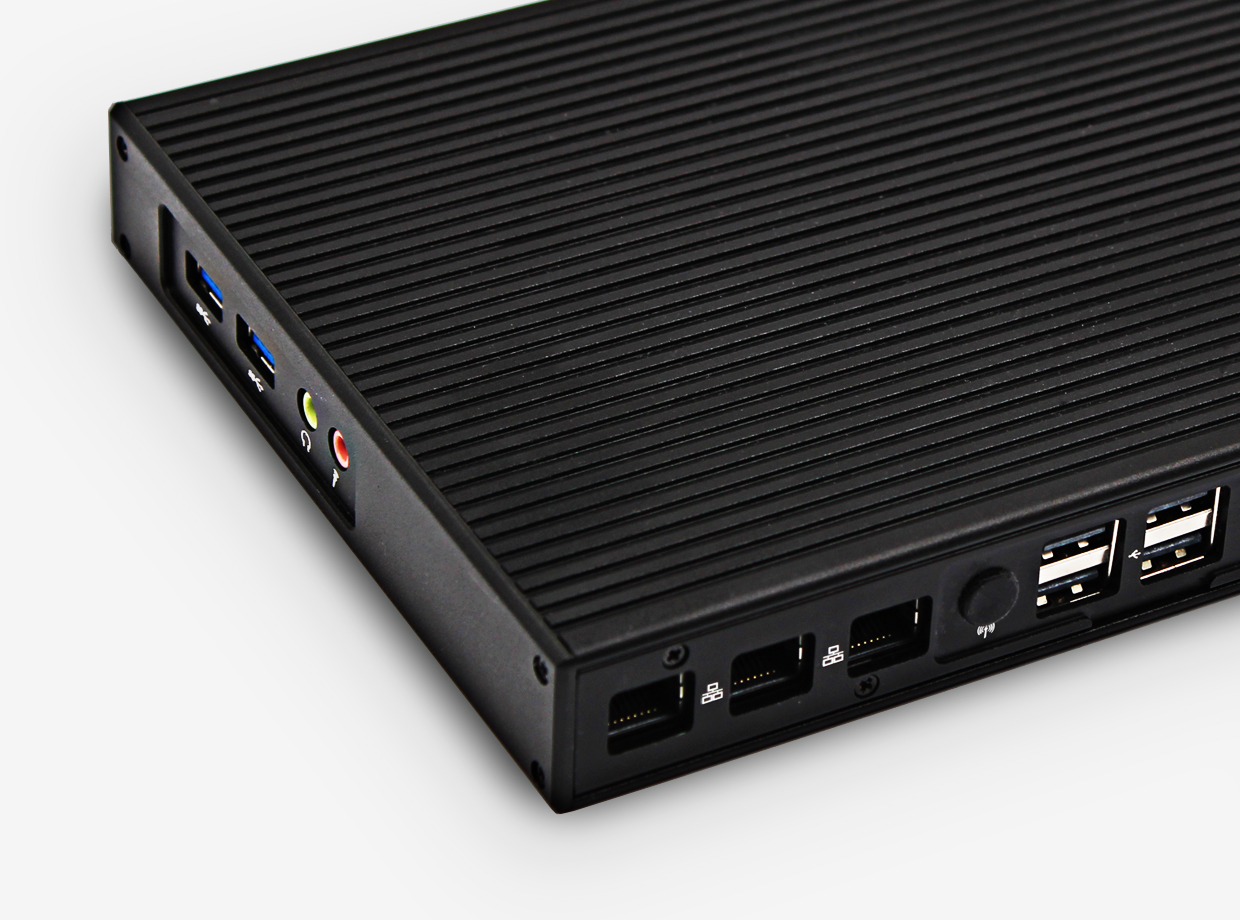

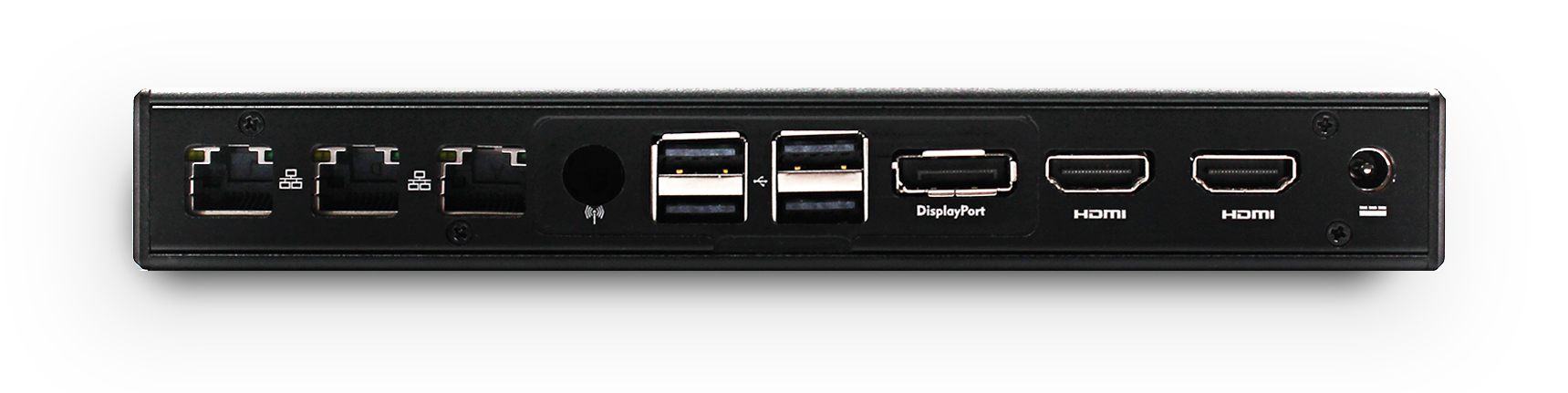

• Rich I/O ports: 2 × USB3.0, 4 × USB2.0, 3 × LAN,  2 × COM

• Wide Expansions：1 × SATA, 1 × Micro SIM slot, 1 × mSATA, 1 × mini-PCIe,    1 × eMMC (optional)

• Fanless design and low power consumption

• High quality Aluminium Enclosure
