Multiple display
HDMI+DP+eDP or LVDS, supports multiple display and gives you an extraordinary visual experience.

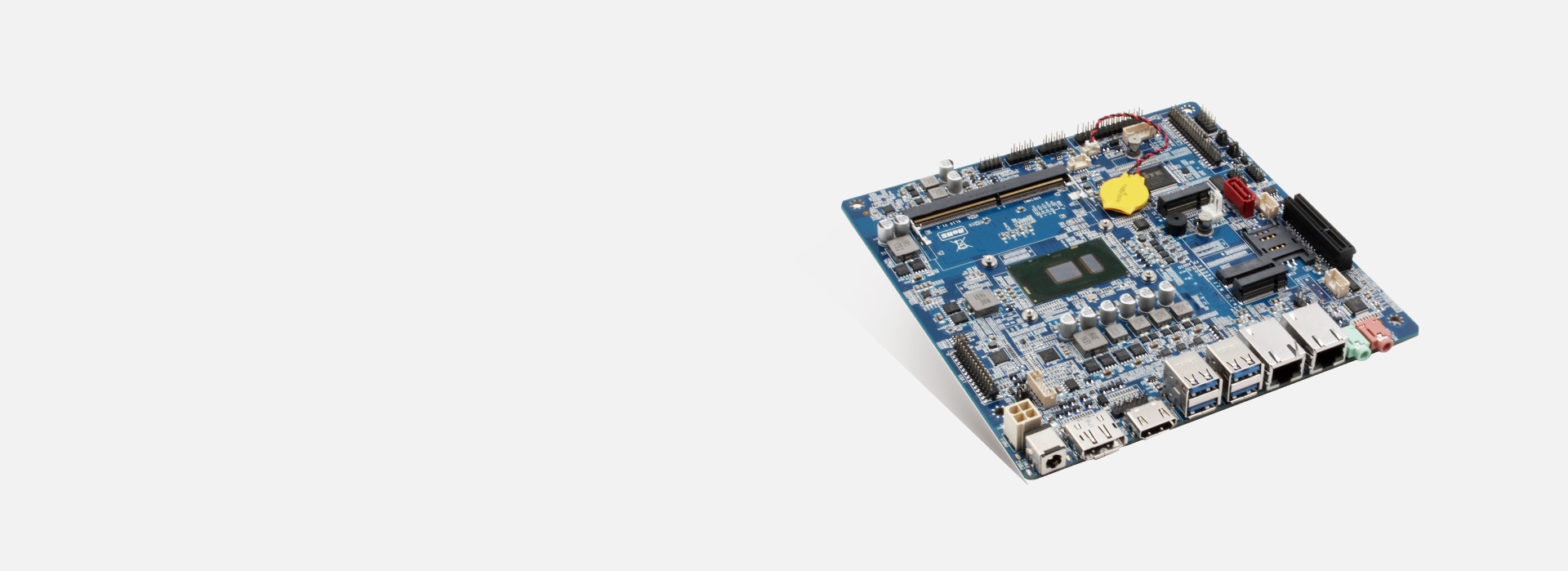

KL-10
We provide mini-ITX motherboards and SBC that can be used in broader range of embedded applications based on cutting-edge platforms and technologies
Wide Application
This product provides you with great experiences
and helps you effeiciently achieve your goals.
and helps you effeiciently achieve your goals.
Medical
Transportation
Industry

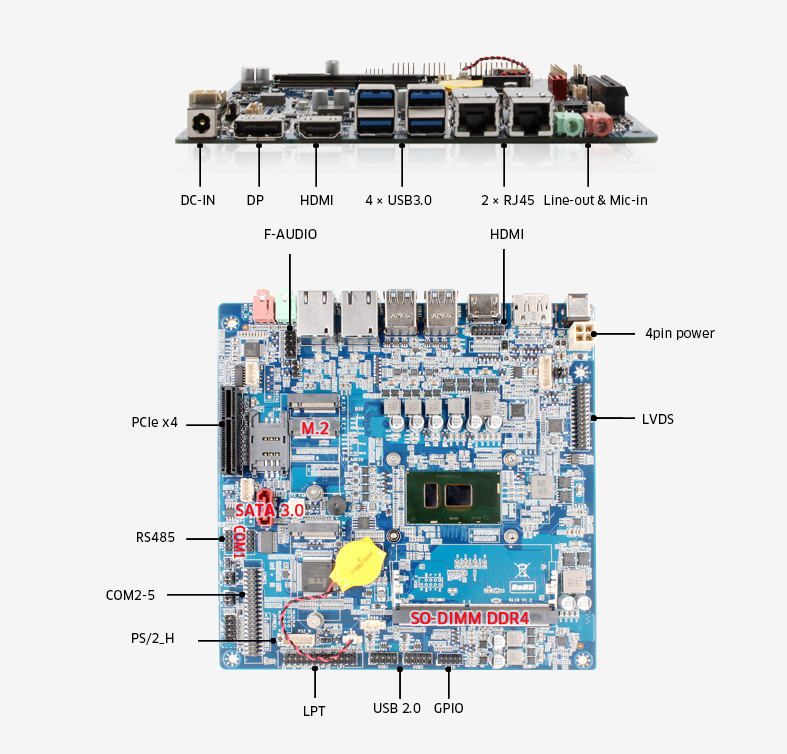

6COM 8USB 2LAN
This mini embedded motherboard also has rich I/O interfaces, which meets the requirement of the market.
产品概述
The MITX-KL10 is an embedded motherboard, supporting Intel® latest 7th Gen. Kabylake-U Core™ i3/i5/i7 Celeron processor (BGA 1356), Celeron® 3865U, Core i3-7100U, Core™ i5-7200U, Core™ i7-7500U.
This board features multiple display via 1×Display Port1.2 and 1× HDMI1.4 and 1×eDP or 1×LVDS. It carries 2× DDR4 DIMM 2133/1866MHz slots up to 32GB to add higher bandwidth and lower latencies for processes. It has 2×10M/100M/1000M BASE-T gigabit LAN (Intel i211), 4×USB3.0, 4×USB2.0, 5×RS232, 1×RS485, 1×LPT, 1x PS2_H, 8×GPIO.
产品特色
Intel Skylake-U/Kabylake-U and Celeron BGA processor
Dual channel DDR4 up to 32GB memory
Multiple display: HDMI, DP, eDP/LVDS
Support 10/100/1000Mbit ethernet card
Support 3G/4G network
SATA3.0, M.2, PCIe 4x
12V DC input
