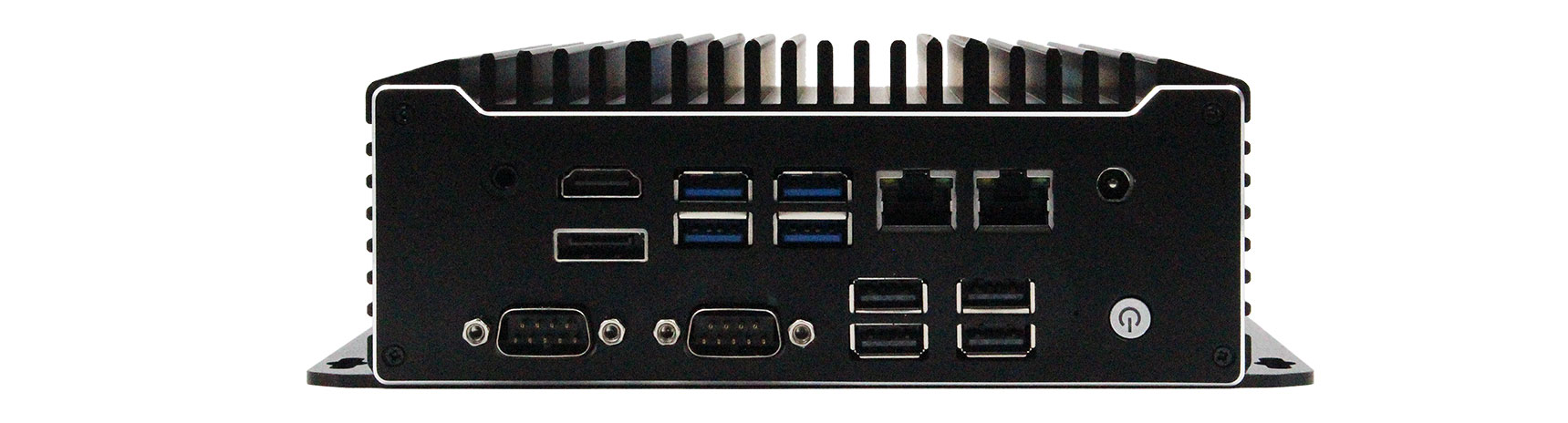

Supreme Interfaces
Plenty of ports for full connectivity.

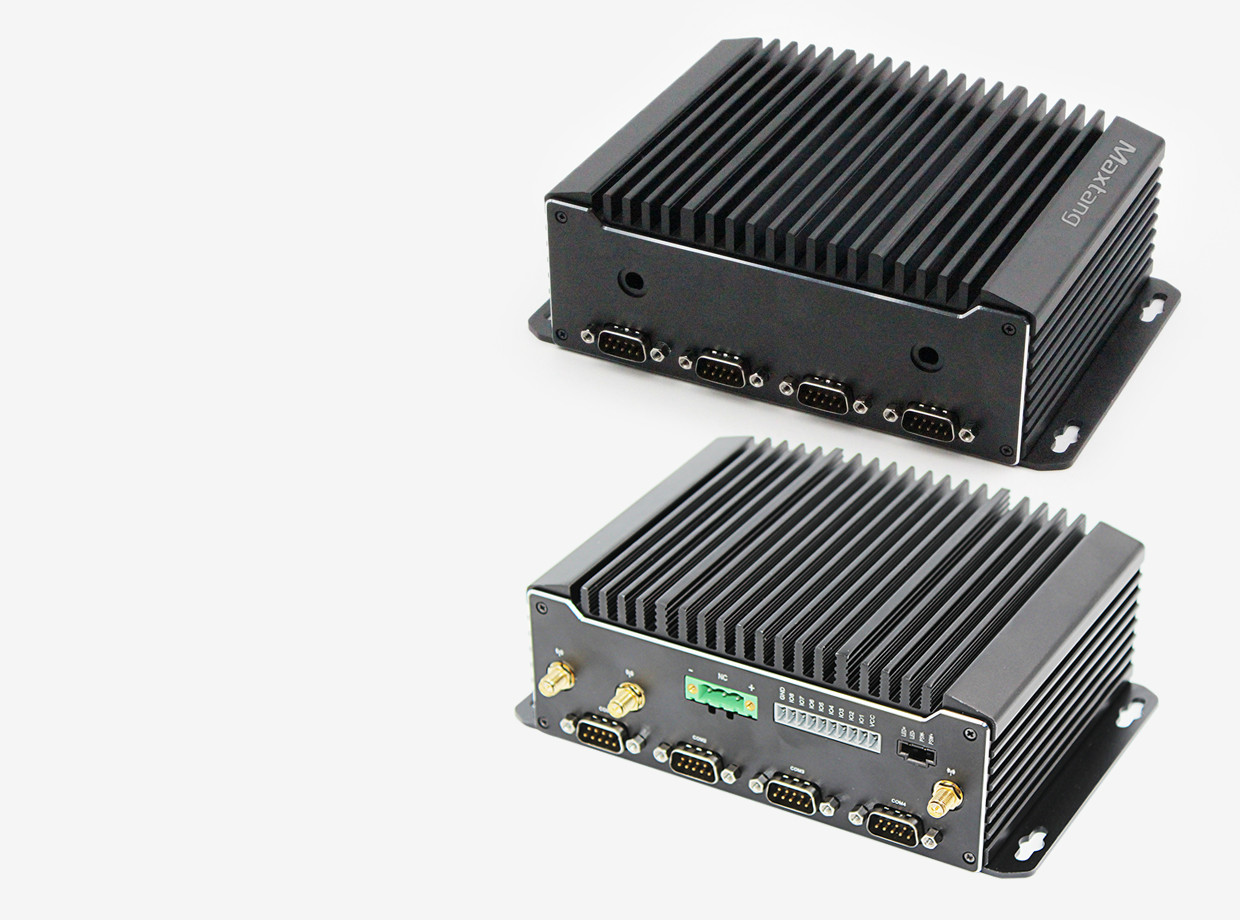

IXKL-35
Intel Kabylake-U Based Box PC
Compact Fanless Embedded PC
With supreme expansion, extreme performance.
Two kinds of power interfaces are optional.
Two kinds of power interfaces are optional.
Advanced features in Embedded PC
This PC blends the performance and power of Intel Kabylake-U platform with rich I/O interfaces to form an especially adaptable computing platform, ideal for workplace and home entertainment.
USB3.0
The standard specifies a maximum transmission speed of upto 5Gbit/s (625MB/s), which is more than 10 times as fast as USB2.0.
Dual Display
Enhanced productivity effiency by extended desktop or enjoy work and play with one ultra small form factor unit.
产品描述

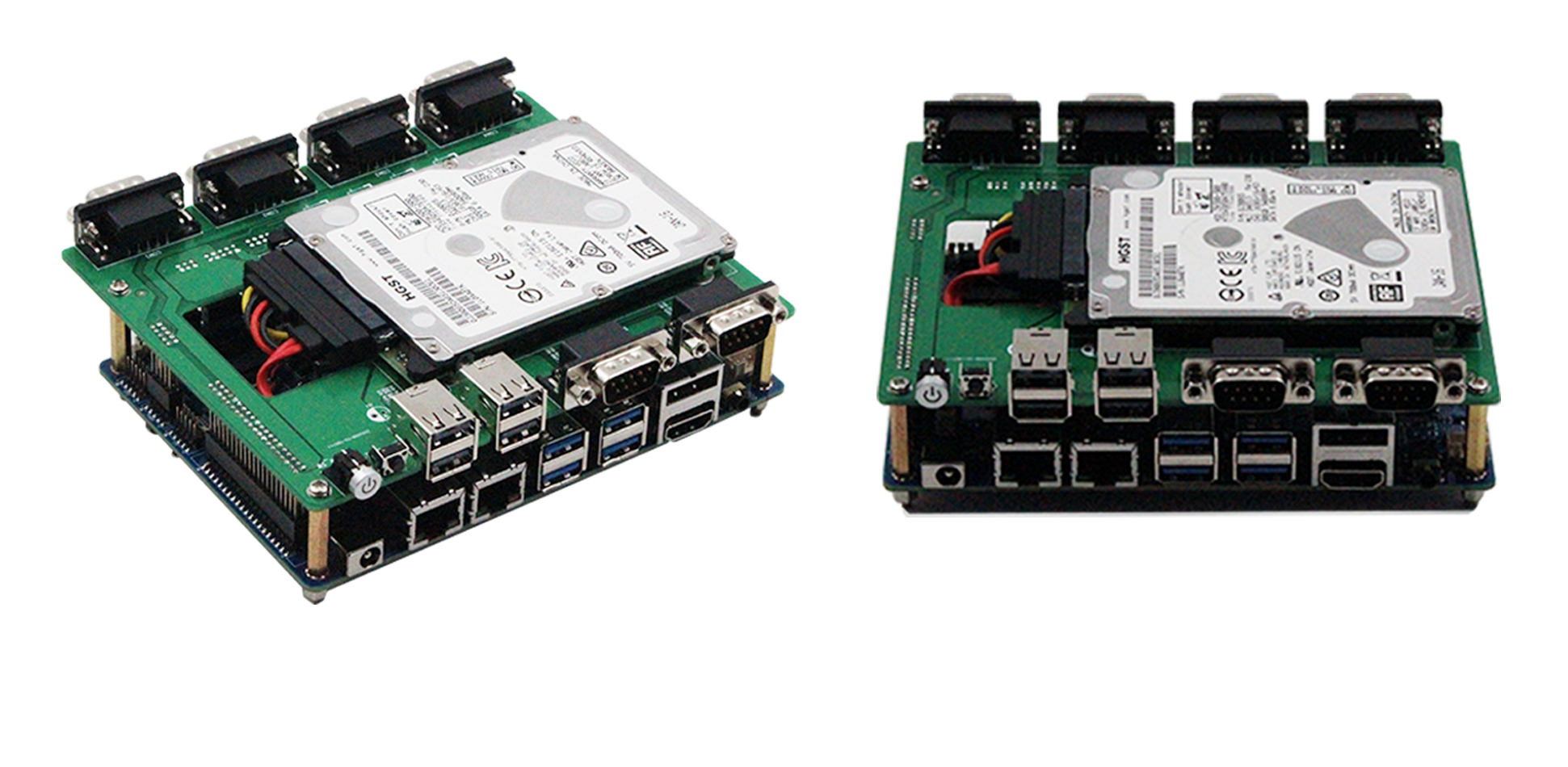

The IXKL-35 is a small form factor embedded system. Built with the Intel® Kabylake-U platform, it supports intel celeron 3865U, i3-6100U,i3-7100U, i5-6200U, i5-7200U, i5-7300U. This system carries two DDR4L SO-DIMM slots with a total maximum of 32GB to add higher bandwidth and lower latencies for processes. That being said, this computer features M.2 and SATA3.0, which makes it a good choice for data transporta-tion application.
This system also features multiple display via 1×Display Port1.2 and 1×HDMI1.4. It has 2×10M/100M/1000M BASE-T gigabit LAN (Intel i211 and Intel i219), 4×USB3.0, 4×USB 2.0, 4×RS232, 2×RS485，catering to most requirements in the market. This system is designed for various application as, but not limited to, automation, network security, communication and transportation.
功能
Intel Skylake-U/Kabylake-U, Celeron BGA processor
Dual channel DDR4 system memory up to 32GB
Dual display: HDMI, DP
10/100/1000Mbit ethernet card
SATA3.0, M.2 (2242 SSD)
9~24V DC input
